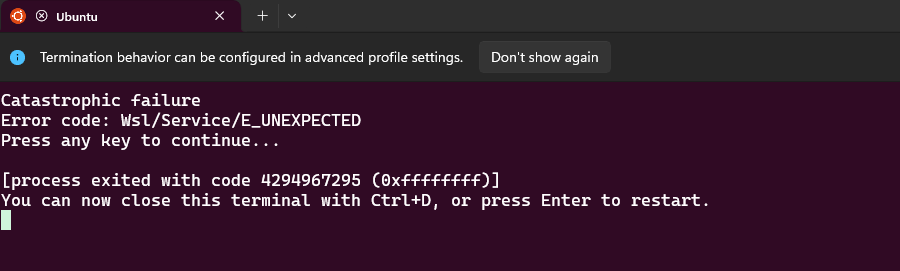

Fixing WSL "Catastrophic Failure" (E_UNEXPECTED) - Complete Recovery Guide

Windows Subsystem for Linux (WSL) provides seamless Linux integration for Windows users, enabling developers to work with Linux tools and environments without dual-booting or virtual machines. However, WSL can encounter critical failures that prevent Linux distributions from starting, often with the dreaded "Catastrophic failure" error.

This comprehensive guide covers the causes, recovery procedures, and preventive measures for WSL crashes, ensuring you can quickly restore your development environment without data loss. WSL crashed

Understanding WSL Architecture and Failure Points

WSL 2 uses a lightweight virtual machine with a custom Linux kernel, managed by the Windows Hyper-V platform. The system consists of several components that can fail:

  • WSL Service: Manages the lifecycle of WSL instances
  • VM Compute Service: Handles virtualization through Hyper-V
  • VHDX Files: Store the Linux filesystem as virtual hard disks
  • Virtual Network: Provides networking between Windows and Linux
  • Kernel: Custom Linux kernel optimized for WSL

When these components fail, you may encounter the E_UNEXPECTED error, which indicates an unexpected failure in the WSL service or virtual machine backend.

Common Causes of WSL Crashes

1. Corrupted WSL State or Services

The vmcompute (Hyper-V Host Compute) or WSL kernel service can become stuck or corrupted, preventing proper initialization of Linux distributions.

2. Locked or Corrupted VHDX Filesystem

Each Linux distribution stores its filesystem in an ext4.vhdx file. If this file becomes locked by another process or corrupted, the distribution cannot start.

3. Insufficient Disk Space

WSL requires adequate space for VHDX expansion. When the host filesystem runs out of space, WSL services may crash or fail to start distributions.

4. Third-Party Software Interference

Antivirus software, backup tools, or ransomware protection can lock WSL files, preventing proper operation.

5. Network Configuration Issues

Corrupted WSL virtual network switches can prevent distributions from starting or connecting to the network.

6. Kernel Update Problems

WSL kernel updates occasionally introduce bugs that cause crashes. Rolling back to a previous kernel version often resolves these issues.

Step-by-Step Recovery Process

Step 1: Assess the Current State

First, determine the status of your WSL installations:

# Check WSL status and installed distributions
wsl -l -v

# Check if WSL service is running
Get-Service -Name "vmcompute" | Select-Object Name, Status, StartType

Step 2: Create Data Backups

Before attempting recovery, always backup your data to prevent loss:

# Create backup directory
New-Item -ItemType Directory -Path "C:\WSL-Backups" -Force

# Shutdown WSL to ensure clean state
wsl --shutdown

# Export each distribution (replace with your distribution names)
wsl --export Ubuntu C:\WSL-Backups\Ubuntu-$(Get-Date -Format 'yyyyMMdd-HHmm').tar
wsl --export Debian C:\WSL-Backups\Debian-$(Get-Date -Format 'yyyyMMdd-HHmm').tar

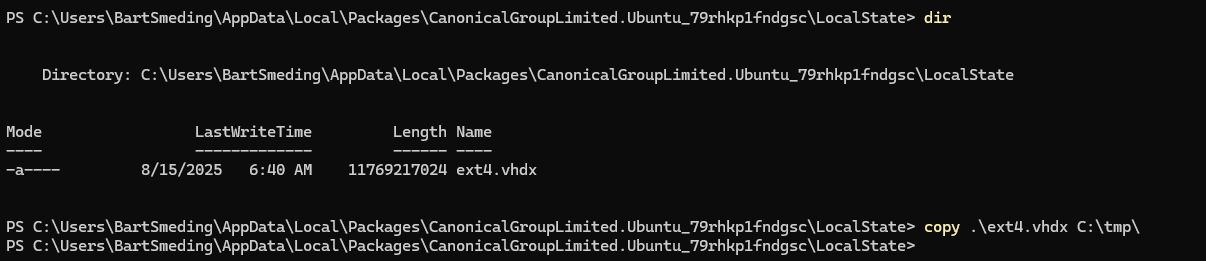

Alternative Backup Method (if export fails): If the export command fails, manually copy the VHDX files:

# Find VHDX files for your distributions
Get-ChildItem -Path "$env:LOCALAPPDATA\Packages" -Recurse -Filter "ext4.vhdx" |
    ForEach-Object {
        $backupPath = "C:\WSL-Backups\$($_.Directory.Name)-$(Get-Date -Format 'yyyyMMdd-HHmm').vhdx"
        Copy-Item -Path $_.FullName -Destination $backupPath
        Write-Host "Backed up $($_.Directory.Name) to $backupPath"
    }

WSL Backup Process

Step 3: Reset WSL Services

Restart the core WSL services to clear any stuck states:

# Shutdown WSL completely
wsl --shutdown

# Stop and restart the VM compute service
Stop-Service -Name "vmcompute" -Force
Start-Service -Name "vmcompute"

# Verify service is running
Get-Service -Name "vmcompute" | Select-Object Name, Status

Step 4: Update or Rollback WSL Kernel

Update the WSL kernel to the latest version, or rollback if the crash occurred after an update:

# Update to latest kernel
wsl --update

# If problems persist after update, rollback to previous version
wsl --rollback

Step 5: Reset Network Configuration

If network-related issues are suspected, reset the WSL virtual network:

# Shutdown WSL
wsl --shutdown

# Remove WSL virtual networks
Get-HNSNetwork | Where-Object { $_.Name -like "*WSL*" } | Remove-HNSNetwork -Force

# Restart computer to recreate networks
Restart-Computer -Force

Step 6: Verify System Health

Check for underlying system issues that might affect WSL:

# Check disk space
Get-WmiObject -Class Win32_LogicalDisk |
    Where-Object { $_.DriveType -eq 3 } |
    Select-Object DeviceID, @{Name="FreeSpace(GB)";Expression={[math]::Round($_.FreeSpace/1GB,2)}},
    @{Name="TotalSize(GB)";Expression={[math]::Round($_.Size/1GB,2)}}

# Run system file checker
sfc /scannow

# Check Windows image health
DISM /Online /Cleanup-Image /RestoreHealth

Step 7: Reinstall WSL (Last Resort)

If all other methods fail, perform a complete WSL reinstallation:

# Shutdown WSL
wsl --shutdown

# Disable WSL features
dism /online /disable-feature /featurename:VirtualMachinePlatform /norestart
dism /online /disable-feature /featurename:Microsoft-Windows-Subsystem-Linux /norestart

# Restart computer
Restart-Computer -Force

# Re-enable WSL features
dism /online /enable-feature /featurename:Microsoft-Windows-Subsystem-Linux /all /norestart
dism /online /enable-feature /featurename:VirtualMachinePlatform /all /norestart

# Restart computer again
Restart-Computer -Force

# Update WSL and set default version
wsl --update
wsl --set-default-version 2

# Re-import your distributions from backups
wsl --import Ubuntu C:\WSL\Ubuntu C:\WSL-Backups\Ubuntu-YYYYMMDD-HHMM.tar --version 2

Preventive Measures

1. Regular Backups

Implement automated backup procedures for your WSL distributions:

# Create a backup script (save as backup-wsl.ps1)
param(
    [string]$BackupPath = "C:\WSL-Backups",
    [string]$DistroName = "Ubuntu"
)

$timestamp = Get-Date -Format 'yyyyMMdd-HHmm'
$backupFile = Join-Path $BackupPath "$DistroName-$timestamp.tar"

# Create backup directory if it doesn't exist
if (!(Test-Path $BackupPath)) {
    New-Item -ItemType Directory -Path $BackupPath -Force
}

# Shutdown WSL and create backup
wsl --shutdown
wsl --export $DistroName $backupFile

Write-Host "Backup created: $backupFile"

2. Antivirus Exclusions

Add WSL directories to antivirus exclusions to prevent interference:

# Common WSL paths to exclude from antivirus scanning
$wslPaths = @(
    "$env:LOCALAPPDATA\Packages",
    "$env:USERPROFILE\AppData\Local\Packages",
    "C:\WSL",
    "C:\WSL-Backups"
)

# Note: Configure these exclusions in your antivirus software
Write-Host "Add these paths to your antivirus exclusions:"
$wslPaths | ForEach-Object { Write-Host "  $_" }

3. Resource Management

Create a .wslconfig file to manage WSL resources:

# C:\Users\<username>\.wslconfig
[wsl2]
# Limit memory usage
memory=8GB

# Limit CPU cores
processors=4

# Disable swap to prevent disk space issues
swap=0

# Enable localhost forwarding
localhostForwarding=true

# Set kernel command line parameters
kernelCommandLine=vsyscall=emulate

4. Monitoring and Maintenance

Implement regular maintenance procedures:

# Weekly maintenance script
Write-Host "Performing WSL maintenance..."

# Check disk space
$diskSpace = Get-WmiObject -Class Win32_LogicalDisk |
    Where-Object { $_.DeviceID -eq "C:" } |
    Select-Object -ExpandProperty FreeSpace

$freeGB = [math]::Round($diskSpace / 1GB, 2)
Write-Host "Available disk space: $freeGB GB"

if ($freeGB -lt 10) {
    Write-Warning "Low disk space detected. Consider cleaning up files."
}

# Restart WSL weekly to prevent memory leaks
wsl --shutdown
Write-Host "WSL restarted successfully."

Automated Recovery Script

Create a comprehensive recovery script for quick restoration:

# wsl-recovery.ps1
param(
    [string]$DistroName = "Ubuntu",
    [string]$BackupPath = "C:\WSL-Backups",
    [switch]$ForceReinstall
)

function Write-Status {
    param([string]$Message)
    Write-Host "[$(Get-Date -Format 'HH:mm:ss')] $Message" -ForegroundColor Cyan
}

function Test-WSLHealth {
    try {
        $result = wsl -l -v 2>&1
        return $LASTEXITCODE -eq 0
    }
    catch {
        return $false
    }
}

Write-Status "Starting WSL recovery process for $DistroName"

# Step 1: Create backup
$timestamp = Get-Date -Format 'yyyyMMdd-HHmm'
$backupFile = Join-Path $BackupPath "$DistroName-$timestamp.tar"

if (!(Test-Path $BackupPath)) {
    New-Item -ItemType Directory -Path $BackupPath -Force
}

Write-Status "Creating backup: $backupFile"
wsl --shutdown
wsl --export $DistroName $backupFile

# Step 2: Reset services
Write-Status "Resetting WSL services"
Stop-Service -Name "vmcompute" -Force -ErrorAction SilentlyContinue
Start-Sleep -Seconds 2
Start-Service -Name "vmcompute"

# Step 3: Update kernel
Write-Status "Updating WSL kernel"
wsl --update

# Step 4: Test recovery
Write-Status "Testing WSL recovery"
if (Test-WSLHealth) {
    Write-Host "WSL recovery successful!" -ForegroundColor Green
    wsl -d $DistroName -e echo "Distribution $DistroName is working correctly"
} else {
    Write-Warning "Basic recovery failed. Consider full reinstallation."

    if ($ForceReinstall) {
        Write-Status "Performing full WSL reinstallation"
        # Add reinstallation logic here
    }
}

Write-Status "Recovery process completed"

Troubleshooting Common Issues

Issue: "WSL 2 installation is incomplete"

Solution:

# Enable required Windows features
dism /online /enable-feature /featurename:Microsoft-Windows-Subsystem-Linux /all
dism /online /enable-feature /featurename:VirtualMachinePlatform /all

# Download and install WSL 2 kernel update
# Visit: https://aka.ms/wsl2kernel

Issue: "The virtual machine could not be started"

Solution:

# Check Hyper-V status
Get-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V-All

# Enable Hyper-V if disabled
Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V-All -All

Issue: "Access is denied" when accessing WSL files

Solution:

# Take ownership of WSL files
takeown /f "$env:LOCALAPPDATA\Packages\*" /r /d y
icacls "$env:LOCALAPPDATA\Packages\*" /grant administrators:F /t

Conclusion

WSL crashes, while frustrating, are typically recoverable with the right approach. By understanding the underlying causes, maintaining regular backups, and following systematic recovery procedures, you can minimize downtime and data loss.

Key takeaways: - Always backup before recovery attempts - Start with service resets before full reinstallation - Implement preventive measures to avoid future crashes - Monitor system resources and WSL health regularly

For ongoing WSL management, consider implementing the automated scripts and monitoring procedures outlined in this guide. Regular maintenance and proactive backup strategies will ensure your WSL environment remains stable and recoverable.
